RELIFE LS5-SE Industrial Bidirectional Thermodynamic Heating & Pressure Bonding Workcell

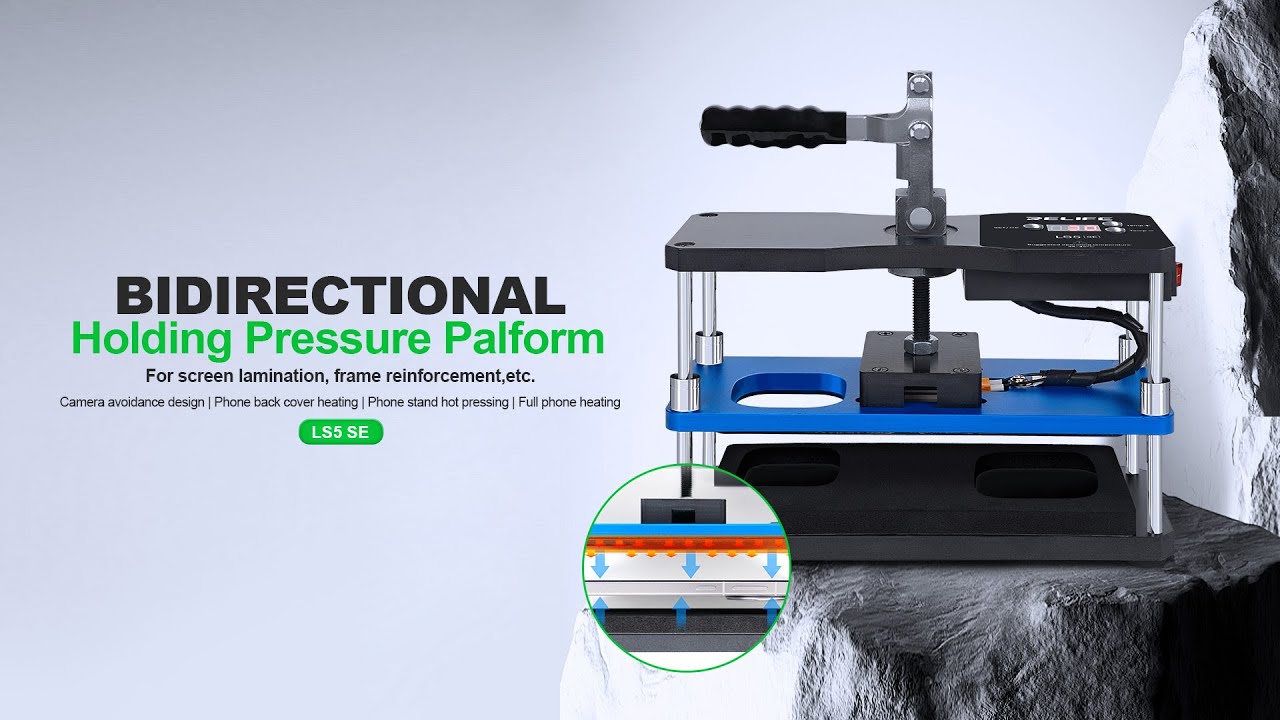

RELIFE LS5-SE Bidirectional Thermocompression Workcell
Dual-axis thermal lamination instrument for structural electronic enclosures. Engineered with an integrated 80°C micro-heating element and uniform pressure delivery mechanics to eliminate module delamination, substrate lifting, and environmental seal failures.
Bidirectional Kinetics & Thermal Activation
Standard manual clamping components apply localized point-force vectors, which often cause erratic pressure gaps and panel stress anomalies. The LS5-SE addresses this structural risk by using a bidirectional mechanical tensioning system that delivers uniform compression across the entire surface area. The platform integrates a low-wattage heating plate that scales up to 80°C. This targeted heat energy accelerates the polymerization and cross-linking metrics of pre-installed structural adhesives, cold-melt glues, and waterproof perimeter seals, curing the adhesive layer cleanly to secure structural stability.
Optical Avoidance Layout & Surface Uniformity
To accommodate contemporary flagship mobile dimensions, the compression surface integrates a specialized camera array avoidance cutout matrix. This recessed gap isolates protruding rear camera lenses (such as those on the iPhone 15/16/17 Pro Max and Samsung Ultra architectures) from direct downward compression lines. This geometry ensures the surrounding display or back-glass substrate sits perfectly flat against the cushioned pressure pad, allowing even load distribution across the perimeter bezel paths without placing mechanical stress on fragile lens arrays.
Facility Assembly Optimization & Yield Rate Consistency
Deploying the LS5-SE thermocompression press across multi-station refurbishment setups streamlines cycle validation times by setting standardized thermal pressing intervals. Eliminating standard manual clamping variables reduces cosmetic structural gaps, prevents post-assembly panel lifting, and secures an air-tight perimeter fit. This control protects interior electronics components and directly aligns with commercial first-pass validation criteria.
Hardware & Operational Material Parameters
| Engineering Parameter | Specification Value / Standard Compliance |
|---|---|
| Product Architecture Code | RELIFE LS5-SE Bidirectional Holding Pressure Station |
| Compression Modality | Dual-Axis Mechanical Threaded Spindle featuring Parallel Load Guides |
| Thermal Scale Regulation | Adjustable Fixed-Step Heating Matrix up to 80°C Maximum Cap |
| Optoelectronic Protection Interface | Molded Rear Camera-Bump Escape Recess (Zero-Load Isolation Matrix) |
| Substrate Cushion Compound | High-Density, Anti-Static Thermal Vulcanized Silicone Press Liners |
| Dimensional Platform Scope | Universal Adjustable Track scaled for modern iOS & Android flagships |
| Chassis Base Assembly | Heavy-Gauge Cast Aluminum Alloy Foundation with Wear-Resistant Sliders |
Laboratory and Production Line Deployment Mapping:
- Post-Refurbishment LCD/OLED Lamination: Optimized to safely press and bond replacement front digitizer profiles into structural midframes following successful autoclave bubble processing.
- Rear Chassis Glass Interfacial Bonding: Provides controlled pressure metrics over the expansive rear face to secure newly applied back covers cleanly following laser desoldering treatment.
- Deformed Structural Alignment: Delivers high mechanical load tracking parameters to assist in re-seating perimeter displays inside slightly warped or bent aluminum and titanium device housings.
B2B Fulfillment & Compliance Standards: AMDETECH is an authorized commercial wholesale supplier of genuine industrial RELIFE engineering hardware systems. Every platform assembly undergoes secondary mechanical compression alignment testing to ensure uniform load distribution tolerances prior to global dispatch. For tax-free EU cross-border wholesale logistics, ensure your company's corporate VAT identification parameters are validated active inside your member account settings before checking out.
